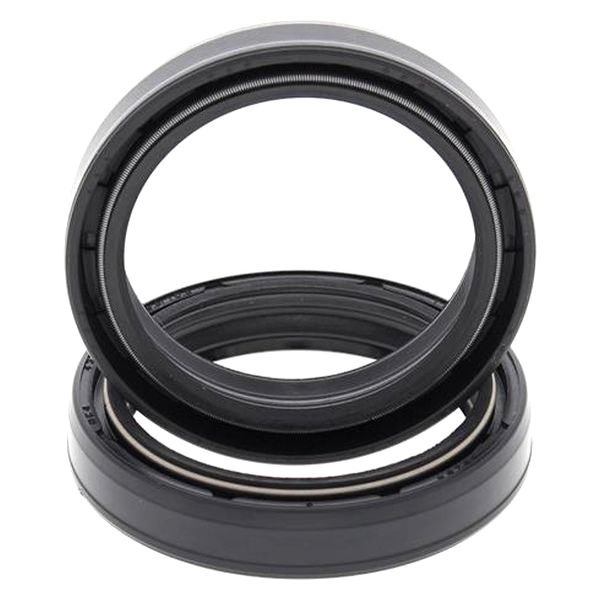

A rubber oil seal, often referred to as an oil seal or a shaft seal, is a mechanical component used to prevent the leakage of lubricating oil or other fluids from one area of a machine or system to another. These seals are commonly found in various automotive, industrial, and machinery applications where rotating or reciprocating shafts penetrate housings or enclosures. The primary purpose of a rubber oil seal is to create a secure and reliable barrier against fluid leakage while allowing the shaft to rotate or move freely. Here are some key characteristics and applications of rubber oil seals:

1. Material: Rubber oil seals are typically made from a combination of rubber or elastomeric materials for the sealing lip and a rigid metal or plastic case or body. The choice of materials depends on factors such as the type of fluid being sealed, temperature, and pressure conditions.

2. Sealing Function: The primary function of a rubber oil seal is to create a hermetic seal around a rotating or reciprocating shaft, preventing the escape of lubricating oil or hydraulic fluid from one side of the seal to the other. Conversely, it also prevents the ingress of contaminants or foreign particles into the sealed area.

3. Design: Rubber oil seals have a lip or sealing element that contacts the surface of the rotating or reciprocating shaft. The lip is typically made of a flexible rubber material that conforms to the shaft's surface, creating a sealing barrier. The metal or plastic case provides structural support and ensures that the seal remains securely in place.

4. Lubrication: To function effectively, rubber oil seals require lubrication to reduce friction and heat generation between the seal lip and the shaft. Lubricating oil or grease helps maintain the integrity of the seal over time.

5. Spring: Some oil seals include a spring or garter spring behind the sealing lip. The spring applies slight pressure against the lip, enhancing the sealing effectiveness and maintaining contact with the shaft's surface.

6. Applications: Rubber oil seals are used in a wide range of applications, including:

Control Arms: Rubber bushings are commonly used in the control arms of a vehicle's suspension system. They allow the control arms to pivot and move as the vehicle encounters bumps and irregularities in the road while providing a degree of comfort and stability.

Sway Bars: Sway bar bushings, also known as stabilizer bar bushings, are used to mount the sway bar to the vehicle's frame or suspension components. They help control body roll during cornering.

Shock Absorbers: Some shock absorbers use rubber bushings to mount them to the vehicle's frame or suspension components. These bushings help dampen vibrations and reduce noise transmission.

Steering Linkage: Rubber bushings are employed in steering linkages, such as tie rod ends and idler arms, to absorb shocks and vibrations while allowing for smooth steering movement.

Leaf Springs: In some older vehicles with leaf spring suspension, rubber bushings are used to attach the leaf springs to the frame, providing flexibility and damping characteristics.

7. Maintenance: Rubber oil seals can wear out over time due to the continuous friction and exposure to fluids. Regular inspection and replacement of worn or damaged oil seals are essential to prevent fluid leaks and maintain the performance and longevity of machinery and equipment.

Rubber oil seals are vital components for preserving the integrity of various mechanical systems by preventing fluid leakage and contamination. Proper selection, installation, and maintenance of oil seals are crucial for the efficient and reliable operation of equipment and machinery.
